MINIMAL SLIDING

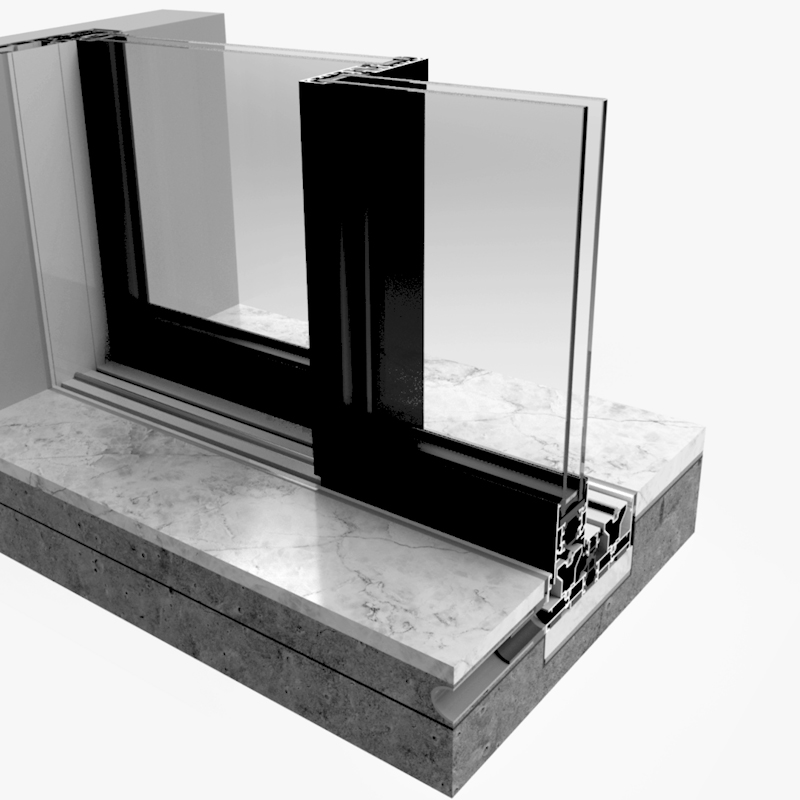

Robo Systems offer a versatile range of Minimal Sliding systems suitable for various building types and markets. Our offerings range from Minimal Slide cold systems for 8mm single glass to Minimal Slide thermal systems accommodating 42mm triple glass. Our minimal systems feature discreet, slim sliding profiles that are mostly hidden within the frames.
Our systems support sash sizes up to 3 meters in height and 2 meters in width, with a weight capacity of up to 250 Kg per sash. We offer reinforcement profiles for varying wind loads.
Technical Characteristics
| Frame Height, Vertical | 42 mm |
| Frame Height, Horizontal Bottom | 42 mm |
| Frame Height, Horizontal Top | 42 mm |
| Frame Width | 55 / 119 / 184 / 227 mm |
| Floor Typology | Step, Submerged |
| Riding Typology | Hovering / Semi Submerged |
| Sash Height, Vertical | 24 / 30 mm |
| Sash Height, Horizontal | 42 / 57 mm |
| Centre Mullion Visible Height | 20 mm |
| Max. Weight per Sash | 250 Kg |
| Max. Sash Width | 2000 mm |
| Max. Sash Height | 3000 mm |
| Glazing Width Possibilities | 6 – 28mm |
| Glazing type | Glazing bit + Bonding |
| Maximum Locking Points | 6 |
| Sealing Type | Brush with Cloth + Q-Lon |
